27 AWG Magnet Wire 155C, Turbine Generator
| ITEM | ITEM DESCRIPTION | QTY | EA | SET | FT |
|---|---|---|---|
| ABS | ABS Plastic, 2Kg Spool | - | - |
| 8MM Rod | 8MM Diameter, 250MM Long | 1 | EA |
| M3 Bolt | M3 Bolt 50MM Long | 6 | EA |
| M3 Nut | M3 Nuts Hex | 6 | EA |
| 8MM 608 | 8MM 608 Skate Bearings | 2 | EA |
| N52 Magnet | M52 Magnets, 30X10X3MM | 20 | EA |
| Power Jack | Power Jack 5.5 X 2.1MM, DC-099, Threaded Female | 1 | EA |
| 27 AWG Wire | 27 AWG SNS 155C Magnet Wire (Red), Spool | - | FT |
| Glue | Super Glue or Better, Bottle | - | - |

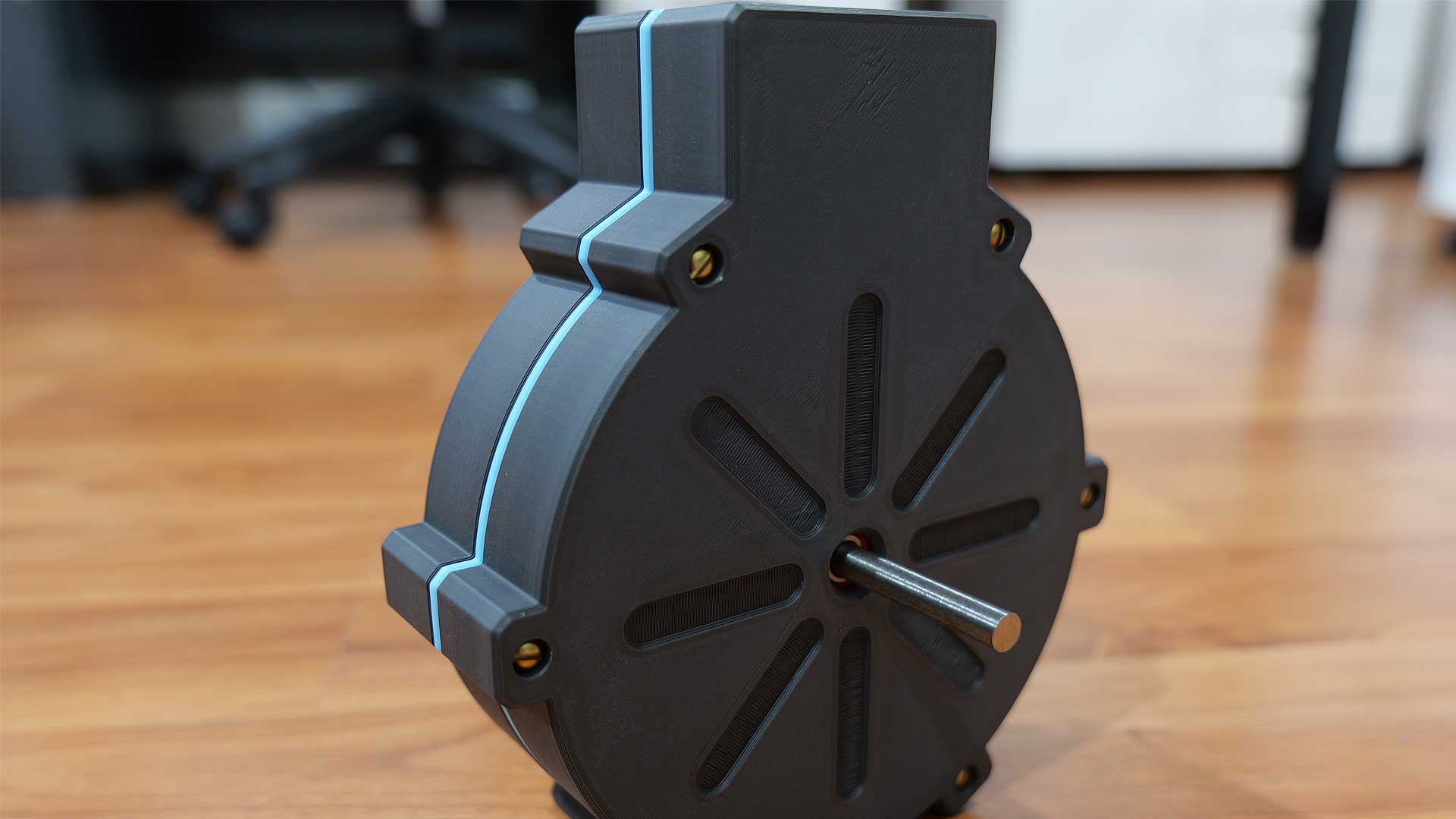

G1 is a compact, high-efficiency turbine generator built for makers, engineers, and DIY energy enthusiasts.
It features six bobbins, each wound with 27 AWG magnet wire at 300 turns, producing a consistent 12V AC at 250 mA at medium to high speeds.
The dual-stator (N52) setup utilizes opposing magnet poles (north and south) to complete the magnetic circuit and maximize voltage output.
Choose your preferred wiring configuration for series or parallel operation.
To minimize magnetic interference, use M3 brass hardware, along with two 8mm skate bearings and an 8mm shaft measuring 250 mm in length,
for smooth, low-friction rotation.
Whether you're powering slight wind, pedal-powered, or experimental systems, GEN-1 is the perfect generator for hands-on innovators and
custom energy projects. Download your STL today at
printables.com
